Auto Round Systems

AUTOMATIC ROUND SYSTEMS

R320

R320

ROUND PRODUCT SYSTEM
ROUND PRODUCT SYSTEM

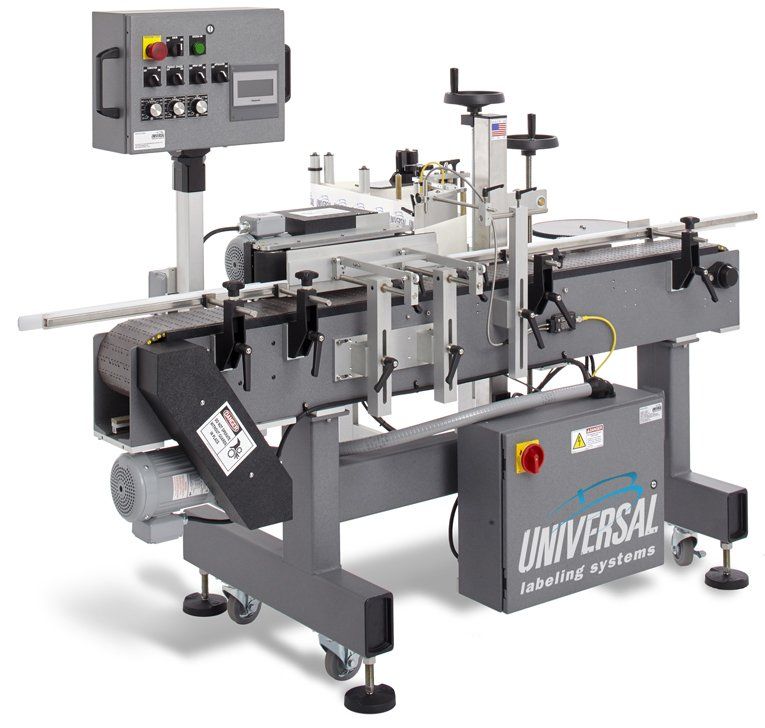

Automatic Round Labeling Systems
Automatic Round Labeling Systems
DOWNLOAD BROCHURE DOWNLOAD BROCHURE

FEATURES

FEATURES

  • Heavy-duty system framework
  • 6”wide x 6’ long Delrin chain conveyor
  • All AC drives
  • Product metering wheel
  • Photoelectric product sensor
  • L15-S stepper driven label applicator
  • 6.5” wide web capacity
  • 12” label roll capacity, 3” core
  • Label dispense speed up to 1300 ipm
  • 15” long label wrapping station
  • UL certified NEMA 12 control enclosure
  • Heavy-duty system framework
  • 6”wide x 6’ long Delrin chain conveyor
  • All AC drives
  • Product metering wheel
  • Photoelectric product sensor
  • L15-S stepper driven label applicator
  • 6.5” wide web capacity
  • 12” label roll capacity, 3” core
  • Label dispense speed up to 1300 ipm
  • 15” long label wrapping station
  • UL certified NEMA 12 control enclosure

SPECIFICATIONS

SPECIFICATIONS

  • Dimensions: 51″W x 72″L x 56″H
  • Speed: up to 1300 ipm
  • Label roll capacity: 12″ OD
  • Web Width: up to 6.5″
  • Electric: 120 VAC
  • Shipping weight: approx.
    1075 lbs
  • Dimensions: 51″W x 72″L x 56″H
  • Speed: up to 1300 ipm
  • Label roll capacity: 12″ OD
  • Web Width: up to 6.5″
  • Electric: 120 VAC
  • Shipping weight: approx.
    1075 lbs

R321

ROUND PRODUCT SYSTEM

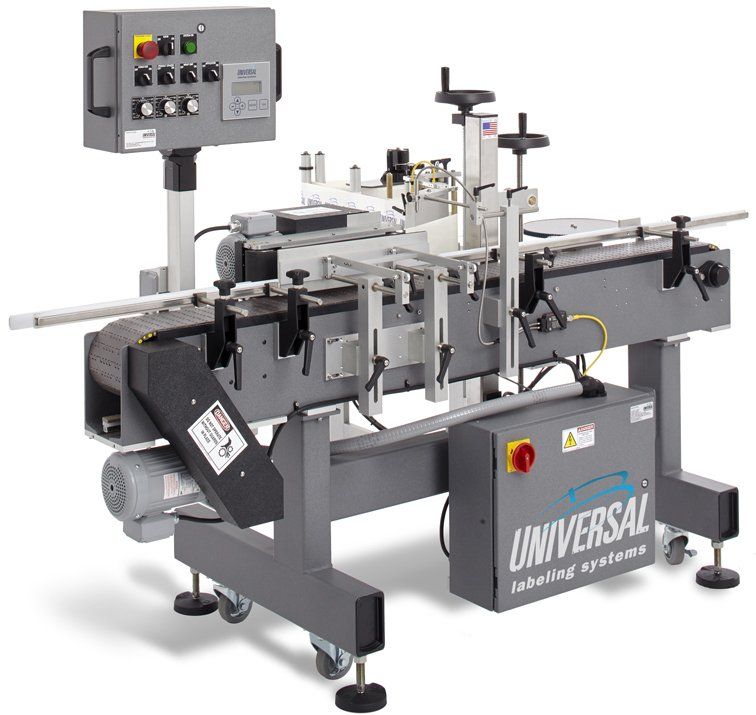

R321 Automatic Round Labeling Systems
DOWNLOAD BROCHURE

FEATURES

  • Heavy-duty system framework
  • 6”wide x 6’ long Delrin chain conveyor
  • All AC drives
  • Product metering wheel
  • Photoelectric product sensor
  • SL1500 stepper driven label applicator with digital controls
  • 6.25” wide web capacity
  • 12” label roll capacity, 3” core
  • Label dispense speed up to 1500 ipm
  • 15” long label wrapping station
  •  Job save option
  • UL certified NEMA 12 control enclosure with multi-level menu system

SPECIFICATIONS

  • Dimensions: 56″W x 72″L x 56″H
  • Speed: up to 1500″ per minute
  • Label roll capacity: 12″ OD
  • Web Width: up to 6.375″
  • Electric: 120 VAC
  • Shipping weight: approx. 1100lbs

R322

SEMI-AUTO FOR ROUNDS

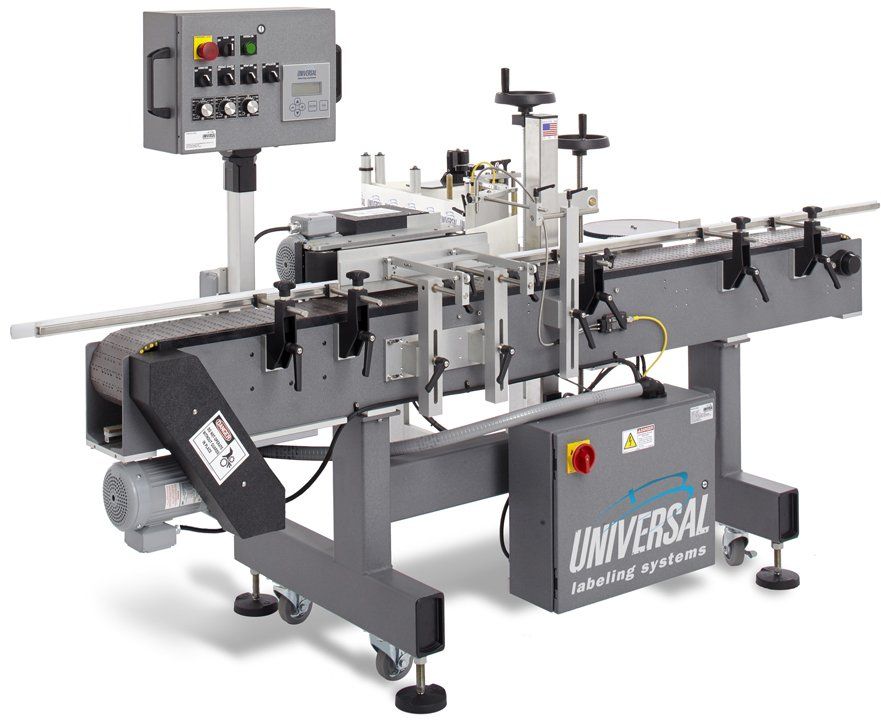

R322 Automatic Round Labeling Systems
DOWNLOAD BROCHURE

FEATURES

  • Heavy-duty system framework
  • 6”wide x 8’ long Delrin chain conveyor
  • All AC drives • Product metering wheel
  • Photoelectric product sensor
  • High-speed SL 2000 stepper driven label applicator
  • Encoder with speed following from wrap station to SL2000
  • 6.25” wide web capacity
  • 16” label roll capacity 3” core
  • Label dispense speed up to 3000 ipm
  • 15” long label wrapping station
  • Job save option
  • UL certified NEMA 12 control enclosure with multi-level menu system

SPECIFICATIONS

  • Dimensions: 59″W x 97″L x 64″H
  • Speed: up to 3000″ per minute
  • Label roll capacity: 16″ OD
  • Web Width: up to 6.375″
  • Electric: 120 VAC
  • Shipping weight: approx. 1160lbS
R310 TABLE TOP FOR ROUNDS L60 TABLE TOP TAMP R315 AUTO TABLE TOP AUTOMATIC ROUND SYSTEMS CONTRACT PACKAGER SERIES UPA II PRINT & APPLY L15-S LABEL APPLICATOR L30 LABEL APPLICATOR L60 LABEL APPLICATOR SL1500 LABEL APPLICATOR SL2000 LABEL APPLICATOR SLV3000 SLEEVE SYSTEM HOT STAMP IMPRINTER FEED & ACCUMULATING TABLES

R321

ROUND PRODUCT SYSTEM
R321 Automatic Round Labeling Systems
DOWNLOAD BROCHURE

FEATURES

  • Heavy duty system framework
  • 6" wide x 6' long delrin chain conveyor
  •  All AC drives
  • Product metering wheel
  •  Photoelectric product sensor
  •  SL1500 stepper driven label
  • Multi-level menu system with digital controls
  • Encoder from wrap station to SL1500
  • Photoelectric label sensor
  • 6.25" wide web capacity
  • 12" label roll capacity, 3" core
  • Variable label dispense speed up to 1500 i.p.m.
  • 15" long label wrapping station
  • UL certified NEMA 12 control enclosure

SPECIFICATIONS

  • Dimensions: 56″W x 72″L x 56″H
  • Speed: up to 1500″ per minute
  • Label roll capacity: 12″ OD
  • Web Width: up to 6.375″
  • Electric: 120 VAC
  • Shipping weight: approx. 1100lbs

R322

SEMI-AUTO FOR ROUNDS
R322 Automatic Round Labeling Systems
DOWNLOAD BROCHURE

FEATURES

  • Heavy-duty system framework
  • 6”wide x 8’ long Delrin chain conveyor
  • All AC drives • Product metering wheel
  • Photoelectric product sensor
  • High-speed SL 2000 stepper driven label applicator
  • Encoder with speed following from wrap station to SL2000
  • 6.25” wide web capacity
  • 16” label roll capacity 3” core
  • Label dispense speed up to 3000 ipm
  • 15” long label wrapping station
  • Job save option
  • UL certified NEMA 12 control enclosure with multi-level menu system

SPECIFICATIONS

  • Dimensions: 59″W x 97″L x 64″H
  • Speed: up to 3000″ per minute
  • Label roll capacity: 16″ OD
  • Web Width: up to 6.375″
  • Electric: 120 VAC
  • Shipping weight: approx. 1160lbS

The R320 / R321 / R322 Series are more than just bottle labeling!

The R320 / R321 / R322 automatic round product labeling systems provide you with the ability to label cylindrical products at speeds from 20 to 300 products per minute. The R320 is the entry level system for those getting started in automating their labeling process. The R321 goes a step further by providing increased speeds and product-to-label synchronization. The R321 automatic for rounds has options that include product encapsulation, product orientation, and the ability to be customized for conical shaped products. And the R322 is the high speed big brother in the automatic round product labeling series, featuring extra wide labeling abilities as well as an option for a vertical trunion(to learn more). The R320 / R321 / R322 automatic round product labeling systems are built with one thing in mind, you and your labeling needs.
