L60 Table Top Tamp

L60 Table Top Tamp

SEMI-AUTOMATIC TAMP

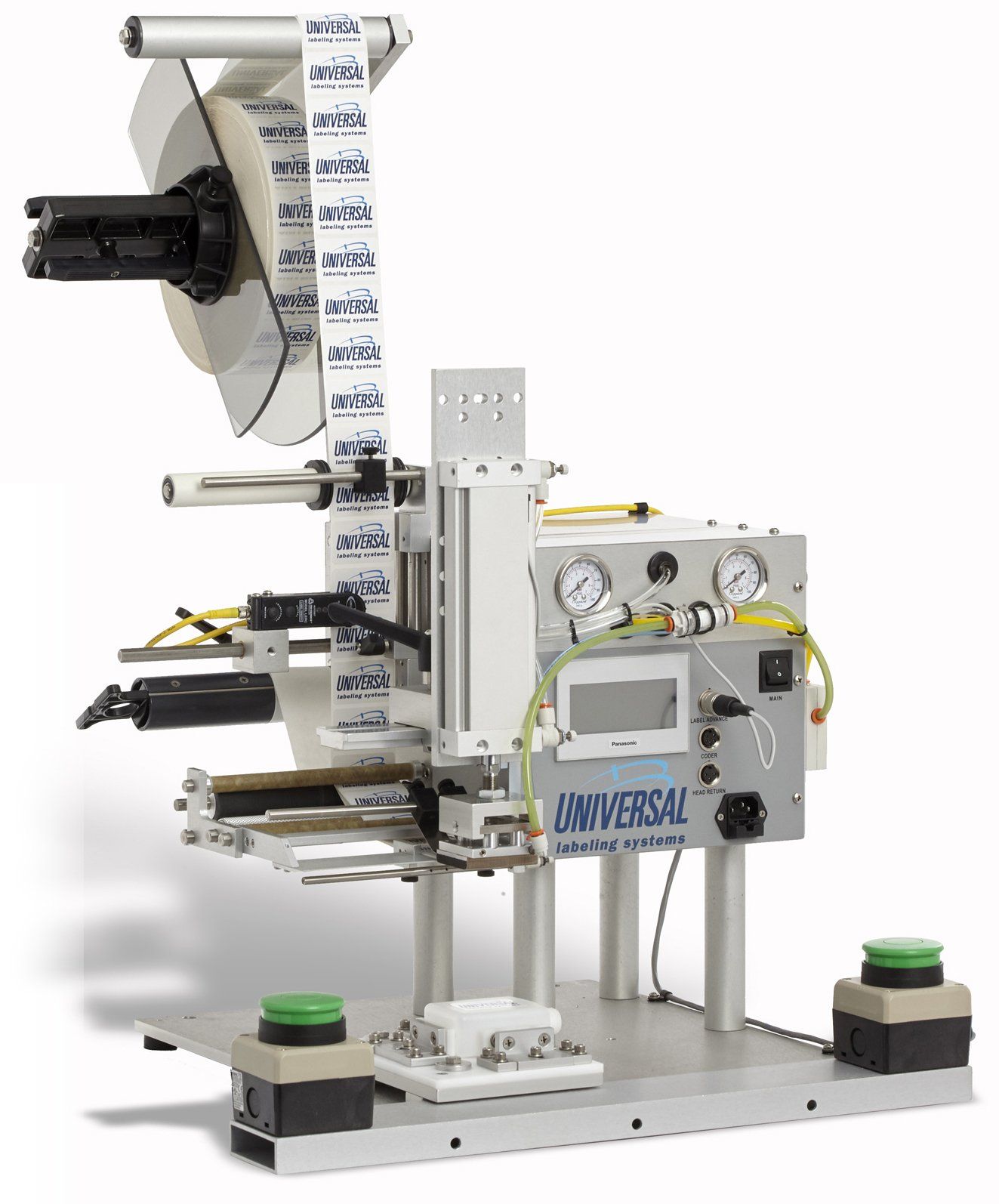

L 60 Semi-Automatic Table Top Tamp

 The L60 semi-automatic is the most customized Universal Labeling machine. The table top L60 can label flats, rounds, ovals, wires, syringes, and practically any odd-shaped product that needs labeling! Have a difficult product to label? Semi-automatic labeling with the Universal Labeling L60 can be your labeling solution.

DOWNLOAD BROCHURE

FEATURES

  • Stepper Driven
  • Programmable Logic Controller (PLC)
  • Label dispense speed up to 600 ipm
  • Photoelectric label sensor
  • Tamp dwell control
  • 6.5” wide web capacity
  • Product detection delay (ON delay)
  • Label stop delay (OFF delay)
  • 12” roll capacity 3” core
  • Includes one “quick change” Tamp head
  • Foot switch activation

SPECIFICATIONS

  • Dimensions: 19″W x
    21″D x 24.75″H.
  • Web width: up to 6.5″.
  • Label roll capacity: up
    to 12″
  • Air: 40PSI Tamp/80PSI Blow-on, electric: 120 VAC

Semi-automatic Labeling

Labeling machinery manufacturers generally address the needs of customers with high volume labeling requirements. But what about those organizations with the medium-to low volume needs? The answer is semi-automatic labeling. The L60 semi-automatic for flats and ovals can be your answer.
